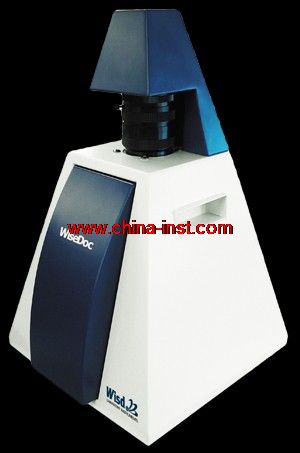

WiseDoc® WGD-20

Application & Features

- The Most Cost-Effective System in the Market.
- Digital CCD Camera (Resolution 1.5 Million pixel) with Portable Darkroom is Offered.
- 1.360×1.024, 10-bit CCD, Avilable for 8-bit Gray Level Image Capturing.
- External Dimension: 260×260×430 mm
- Weight: 9 kg
- Power Consumption: N/A
- Very Compact Portable Darkroom System Enables the Existing Transilluminators in the Lab to be used together with. High Flexibility in use is Offered.
- High-Precision and Large Caliber Optical Lens with Zoom, Focus and Iris Control is used.
- USB 2,0 Interface is Available, through which Real-Time Images are Transferred Directly to PC.
- WiseCapture™ Software: Easy and Fast Capture of Gel Image.
- TotalLab™ Software: Fully Automatic, Single Button Press Complete Image Analysis within Area of Interest. (Optional)
- CE Certified.

WiseDoc® WGD-30

Application & Features

- Complete System with a Digital CCD Camera, Safety Darkroom Hood and in-built Transilluminator is Offered.
- Unified Darkroom System with in-built Sliding Transilluminator offers very High Safety in use.
- Transilluminator: 312 nm, 8 W×6 UV lamps. (WUV-M20)
- External Dimension: 395×393×676,5 mm
- Internal Dimension: 350×275×400 mm
- Door Size: 343×257
- Weight: 19 kg
- White Light: 2 ×Fluorescent lamp.
- Power Consumption: 60 W
- Digital CCD Camera. (Resolution 1.5 Million pixel)
- 1.360×1.024, 10-bit CCD, Avilable for 8-bit Gray Level Image Capturing.
- High-Quality Optical Lens with Zoom, Focus and Iris Control (Manual Adjust) is used.
- USB 2.0 Interface is available, through which Real-time Images are Transferred Directly to PC.
- WiseCapture™ Software: Easy and Fast Capture of Gel Image. (Included)
- TotalLab™ Software: Fully Automatic, Single Button Press Complete Image Analysis within Area of Interest.
- CE Certified.

WiseUV® WUV-M20

Application & Features

- Low Cost, Robust, Versatile, Affordable & Gentle Excitation.
- Hinged UV-Blocking Safety Cover Protects User from UV Radiation.
- Long-Life Electronic. (Low Heat, no Flickering)
- Stainless-Steel Frame and Robust Steel Housing.
- Increased UV Intensity and Homogeneity.
- Used for Standard Gel Documentation and Preparative Work.
- Ideal for Detecting Very Small Amount of DNA & RNA Stained by EtBr.
- High (100 %) / Low (75 %) Intensity Switch.
- CE Certified.
